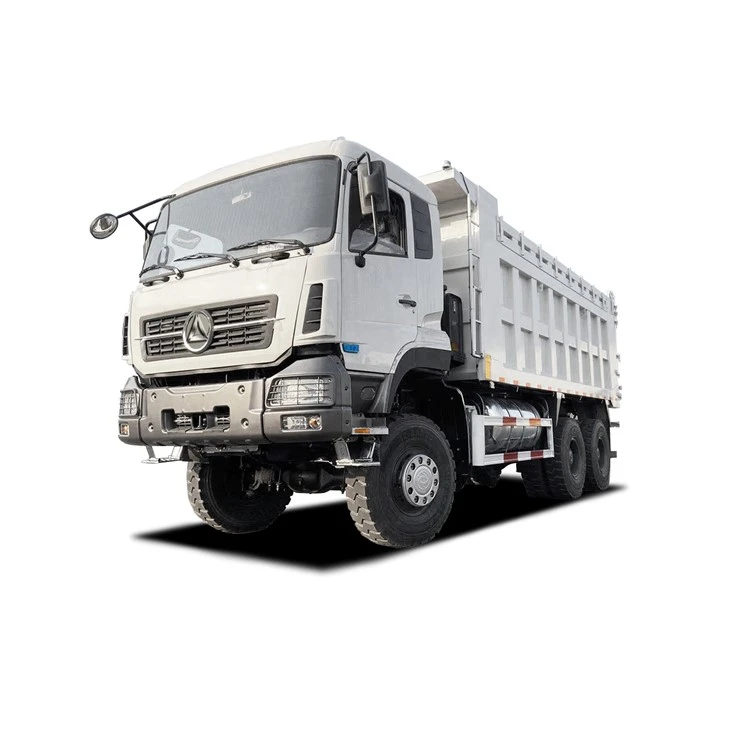

6 × 6 Euro III 8.9L Cav 35Tons Pob Tseg Truck
| 64 GV45BED8.9P340M9O | 64 GV45BED8.9P375M9O | |
| Txee | ||
| Lub rooj tsav tsheb | Cua shock absorbing tsav lub rooj | Cua shock absorbing tsav lub rooj |
| Neeg nrog caij | Neeg nrog caij lub rooj zaum rov qab yog adjustable | Neeg nrog caij lub rooj zaum rov qab yog adjustable |
| Lub txaj | Ib lub txaj dav 650mm | Ib lub txaj dav 650mm |
| Feature | Central locking, Fais fab qhov rais, FM, A / C | Central locking, Fais fab qhov rais, FM, A / C |
| Cav | ||
| Hom & Qauv | Cummins L 340-30 | Cummins L 375-30 |
| Hom | EGR, 6 Lub tog raj kheej | EGR, 6 Lub tog raj kheej |
| Lub tog raj kheej ntim (liter) | 8.9 | 8.9 |
| Max. Lub zog (PS / rpm) | 340/ 2,200 | 375/ 2,200 |
| Max. Lub zog torque (Nm / rpm) | 1350/ 1,400 | 1480/ 1,400 |
| Kev sib kis | ||
| Qauv | 9 JS135 TSI | 9JSDX150TA-B |
| Hom | Phau ntawv | Phau ntawv |
| Tag nrho cov iav | 9- nrawm nrawm +1- nrawm rov qab | 9- nrawm nrawm +1- nrawm rov qab |
| 1st iav ratio iav ratio | 11.016/ 0.733 | 12.47/ 0.73 |
| Hloov Case | ||
| Qauv | TIAB SA 1400 | TC 2000 H |
| Max. input zog torque (Nm) | 14000 | 20000 |
| H/L ratio | 0.88 / 1.52 | 1 / 1.536 |
| Pem hauv ntej qag | ||
| Peev xwm (kg) | 9,000 | 9,000 |
| Tsim Max. Peev xwm (kg) | 11,000 | 11,000 |
| Feature | Steering & Tsav Axle | Steering & Tsav Axle |
| rear qag | ||
| Peev xwm (kg) | 36,000 | 36,000 |
| Tsim Max. Peev xwm (kg) | 40,000 | 40,000 |
| Qhov kawg iav piv | 6.733 | 5.921 |
| Qhov txawv. xauv | Inter-wheel & Inter- qag | Inter-wheel & Inter- qag |
| Feature | Hub txo Tsav Axle | Hub txo Tsav Axle |
| Kev ncua | ||
| Pem hauv ntej Suspension | Parabolic nrog stabilizer | Parabolic nrog stabilizer |
| Tsheb Suspension | tandem bogie nrog stabilizer | tandem bogie nrog stabilizer |
| Nres | ||
| Main nres | Tag nrho cov huab cua, S-cam, dual circuit ABS | Tag nrho cov huab cua, S-cam, dual circuit ABS |
| Ntxiv nres | Nres nres | Nres nres |
| Log & log | ||
| Log Loj | 9 | 9 |
| Log tsheb loj | 315/80R22. 5 20PR | 315/80R22. 5 20PR |
| Hom | Tubeless | Tubeless |
| Loading peev (kg) | 4125 | 4125 |
| Kev ua tau zoo | ||
| Max. ceev (km / h) | 90 | 90 |
| Accu | ||
| Lub zog / lub zog | 2 x 12V, 160 Ah. kev txij nkawm qis | 2 x 12V, 160 Ah. kev txij nkawm qis |
| Clutch | ||
| Hom | Qhuav-ib phaj, hydraulic actuated tswj nrog servo kev pab | |
| Txoj kab uas hla (mm) | 430 | 430 |
| Roj Tank | ||
| Ntim (liter) | 350l ua. Hlau | 350l ua. Hlau |
| Dimension | ||
| Wheelbase WB (mm) | 3650+1450/ 3800+1450 4000+1450/ 4200+1450 | 3650+1450/ 3800+1450 4000+1450/ 4200+1450 |
| Tag nrho Length (mm) | 8,250/ 8,450/ 8,650/ 8,850/ 9,050/ 9,250/ 9,450 | 8,250/ 8,450/ 8,650/ 8,850/ 9,050/ 9,250/ 9,450 |
| Tag nrho qhov dav W (mm) | 2,550 | 2,550 |
| Tag nrho qhov siab H (mm) | 3,450 | 3,450 |
| Pem hauv ntej overhang FOH (mm) | 1,500 | 1,500 |
| Rov qab overhang ROH (mm) | 1,650/ 1,700/ 1,900/ 1,900/ 2,100/ 2,100/ 2,300 | 1,650/ 1,700/ 1,900/ 1,900/ 2,100/ 2,100/ 2,300 |
| Chassis hnyav | ||
| Qhov hnyav (kg) | 13,500 | 13,500 |
| Plated GVW (kg) | 45,000 | 45,000 |
| Design GVW (kg) | 51,000 | 51,000 |
| GCW (kg) | - | - |
| Lub thawv | ||
| Lub thawv Length BL (mm) | 5,200/ 5,400/ 5,600/ 5,800/ 6,000/ 6,200/ 6,400 | 5,200/ 5,400/ 5,600/ 5,800/ 6,000/ 6,200/ 6,400 |
| Lub thawv dav BW (mm) | 2300 | 2300 |
| Lub thawv qhov siab BH (mm) | 1500 | 1500 |
