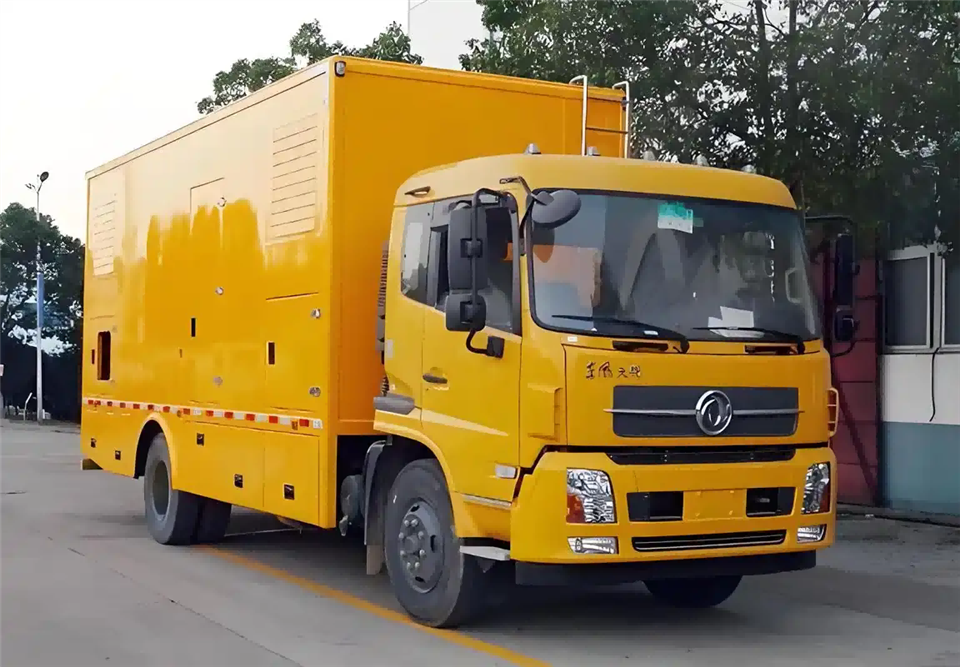

Emergency Electric Power Supply Truck
Lub zog fais fab tsheb yog tsim los ntawm lub tsheb chassis, diesel cav pab pawg, tswj qhov system, asilent kem, hydraulic txhawb system, cable retractable system, cua nkag thiab tso system, suab nrov txo qhov system, thiab tso system.Tag nrho cov ncauj lus kom ntxaws specifications thiab xaiv ntawm cov khoom siv yog raws li qhov kev thov ntawm cov neeg siv kawg. Thaum lub sij hawm fais fab mov, kev ua haujlwm siab thiab kev nyab xeeb yog ob qho khoom tseem ceeb uas peb yuav tsum xav txog thiab tuaj txog.Ua ntej thov cov lus hais, thov ua kev txhawb nqa rau peb pab neeg muag khoom kom paub meej raws li koj xav tau, txhawm rau kom peb ua kom zoo tshaj plaws. rau koj.
| Chassis Model | RR42GV17ED5.9P210M8O | |
| Muaj peev xwm | RWB Max. Ceev (km / h) | 101 |
| RWD Gradeability | 18% | |
| AWD Max. Ceev (km / h) | 101 | |
| AWD Gradeability | 17% | |
| Turning Circle Diameter Curb rau Curb (mm) | 13000 | |
| Txoj kab uas hla ntawm lub voj voog rau phab ntsa (mm) | 15700 | |
| Tsim Cov Tsheb Nyhav Nyhav (kg) | 17000 | |
| Qhov hnyav tag nrho (kg) | 13500 | |
| Chassis | Chassis Hom | Riam |
| Tsav hom | 4×2 | |
| Wheelbase (mm) | 4700 | |
| Qhov Chaw Hauv Tsev (mm) | 6200 | |
| Tsheb kauj vab (mm) | 1700 | |
| Zuag qhia tag nrho Length (mm) | 8350 | |
| Txee | Qauv | R-Rest |
| Lub txaj (mm) | 600 | |
| Cav | Hom | Cummins |
| Qauv | B210-33 | |
| Tpye | EGR | |
| Lub tog raj kheej Volume (liter) | 5.9 | |
| Max. Lub zog (PS / rpm) | 210 / 2500 | |
| Max. Torque (Nm / rpm) | 700 / 1500-1600 | |
| Kev sib kis | Qauv | 8JS85TF-C ua |
| Hom | Phau ntawv | |
| Input Torque (Nm.) | 850 | |
| Total Gears | 8- nrawm nrawm + 2- nrawm rov qab | |
| 1st Iav piv / Sab saum toj iav piv | 11.748 / 1 | |
| Hloov Case | Qauv | Tsis muaj |
| Max. Input Torque (Nm / rpm) | - / - | |
| High Gear Ratio / Tsawg Gear Ratio | 1 / 1 | |
| Pem hauv ntej / rear tso zis Torque Ratio | 1 | |
| Steering qag | Qauv | FSS 5.5 |
| Plated / Tsim Nyhav (kg) | 5500 / 6500 | |
| Tire Model | 295/80R22. 5 18PR - LC3750 | |
| Tire Peev Xwm (kg) | 3750 | |
| Tsav Axle | Qauv | NWS 1125 |
| Plated Nyhav (kg) | 11500 / 13500 | |
| Gear Ratio | 4.875 | |
| Tire Model | 295/80R22. 5 18PR - LC3750 | |
| Tire Peev Xwm (kg) | 3750 | |
| Sab laug Axle | Qauv | Tsis muaj |
| Plated Nyhav (kg) | - / 0 | |
| Tire Model | Tsis muaj | |
| Tire Peev Xwm (kg) | 0 | |
| Lwm yam | Ncej | 280×80×(8+4) |
| Suspension xaiv tau | Tsawg-nplooj parabolic springs ncua kev kawm ntawv | |
| nplooj parabolic springs ncua kev kawm ntawv | ||
| Cua ncua | ||
| Roj Tanker | FT 280 S | |
| 280L Steel roj tanker | ||
